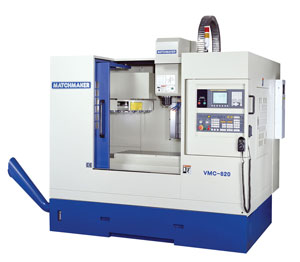

Matchmaker VMC 820 |
|---|
| Travel | VMC 820 | |||
| X - axis | 820mm | |||
| Y - axis | 520mm | |||
| Z - axis | 500mm | |||
| Spindle Nose to Table | 150-650mm | |||
| Table | ||||
| Size | 950mm-450mm | |||
| T-slots (size x number) | 18mm x 4 | |||
| Max weight on table | 400kg | |||
| Spindle | ||||
| Spindle speed | 8,000rpm | |||
| Spindle taper | BT40 | |||
| Transmission | Direct speed, belt drive | |||
| Spindle motor | Fanuc alpha 8 (11.5)kw | |||
| Spindle to the column ways | 480mm | |||
| Feedrates | ||||
| Rapid Feed Rate X, Y | 15.0 m/min | |||
| Rapid Feed Rate Z | 12.0 m/min | |||
| Ballscrew dia & pitch | Ø36 x 10 | |||
| Axis motors | ||||
| Axis drive motor (X/Y/Z) | Fanuc alpha c12 | |||
| Axis motor thrust rating | 1.0kw | |||
| ATC | ||||
| ATC number of tools | 20 | |||
| Max tool weight | 6kg | |||
| Max tool diameter | 100mm | |||
| Max tool length | 250mm | |||
| Spindle Taper | BT 40 | |||
| Accuracy | ||||
| Axis positioning (at 20°C) | +- 0.005mm Full stroke | |||
| Axis repeatability (at 20°C) | +-0.0025mm | |||
| Other | ||||
| Air pressure requirement | 7 bar | |||
| Machine width x depth | 2410mm x 2020mm | |||
| Machine weight | 3500kg | |||
| Coolant pump | 375w | |||
| Coolant tank capacity | 100ltrs | |||
| Total power consumption | 3phase, 32 AMPS,440VAC | |||
